The same two-word error – “CML error” – can mean a missing bracket or a solver that ran out of time on an unsatisfiable model. One of those takes thirty seconds to fix. The other can swallow an afternoon if you start in the wrong place.
The main problem is that the message you see and the cause underneath it are often two different things, sitting in two different layers of the model.
This article is a reading guide. It sorts CML errors by when they appear, shows what each kind is usually telling you, and points to where to look first – so the next one stops being a black box and becomes a clue.
Constraint Modeling Language (CML) is the language behind the Product Configurator in Salesforce Revenue Cloud. A CML model isn't a script that runs line by line – it's a set of rules a solver tries to satisfy all at once. So one error can come from the code, the product data, the context, the user's selections, or the way they combine when the solver runs.
This matters more as teams move off the end-of-sale Salesforce CPQ to Agentforce Revenue Management. More models run on CML now, and it comes from all over: written by hand, generated by the Visual Builder, or inherited from an older model.
Reading an error means knowing which of those layers it belongs to.
The fastest way to narrow it down is to ask when the error appeared. A CML model breaks at three moments: when you save it, when you activate it, and when someone configures a product. They also run from easiest to hardest to diagnose – so we'll take them in that order.
This is the first place mistakes appear, while the model is still being written to match business requirements. The errors here are syntax and compilation problems – typing, structure, constraints, and rules. Typical causes include:

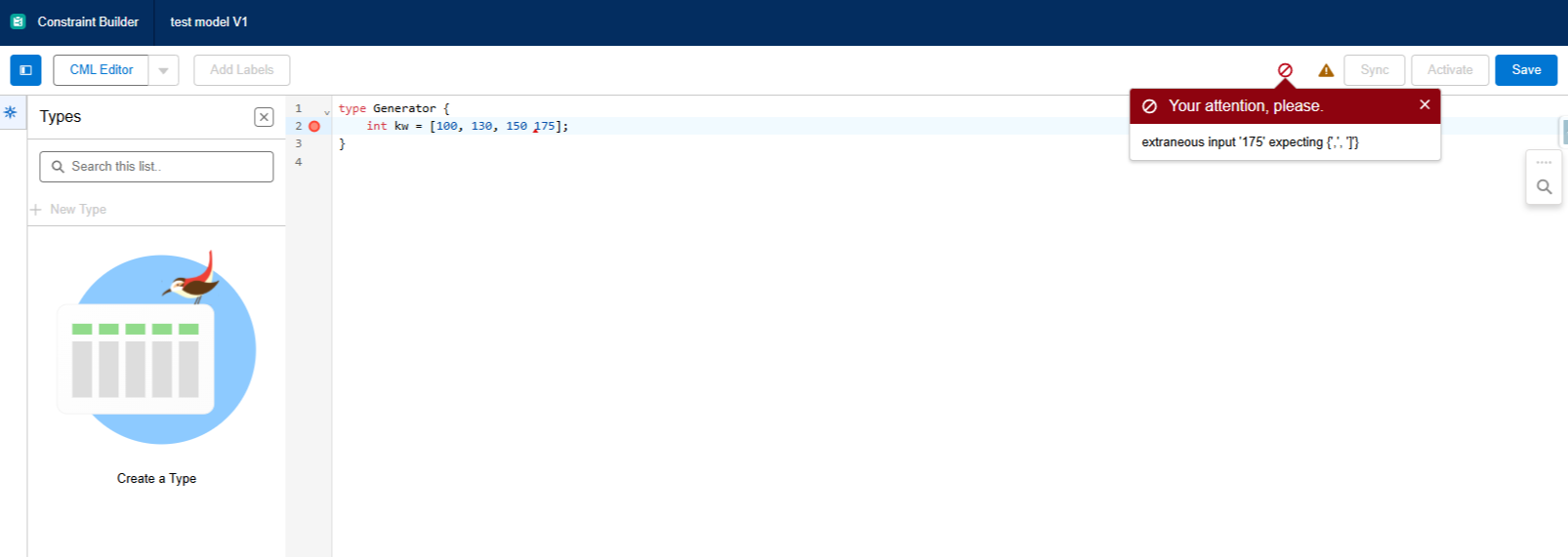

How to read them: When a save fails, the system almost always returns a readable message that names the block where the problem sits – and you have an advantage the later stages don’t give you: you just made the change, so you already know roughly where to look.
At this stage the message usually contains everything you need; the fix is to study it, locate the spot it points to, and correct it.
The common mistake: reaching for the data or the setup before re-reading the code. At this stage the answer is almost always in what you just changed – start there, with the message and your last edit.
To reduce these errors before they happen, keep Salesforce’s Variable Data Types reference and the CML Best Practices page open while you write.
Activation is where the model meets the data it depends on. The system validates the model together with the product setup – the product hierarchy, the associations between products, attribute definitions and their status, and product classifications – so the errors change character.
They can come from the model, but they can equally come from the catalog underneath it. Typical causes include:
How to read them: As at save time, the message gives you something to work with, but here it can point in more than one direction: the same error might trace back to the model, to PCM configuration, or to outdated or incorrect data. The message narrows the search; it doesn’t always close it.

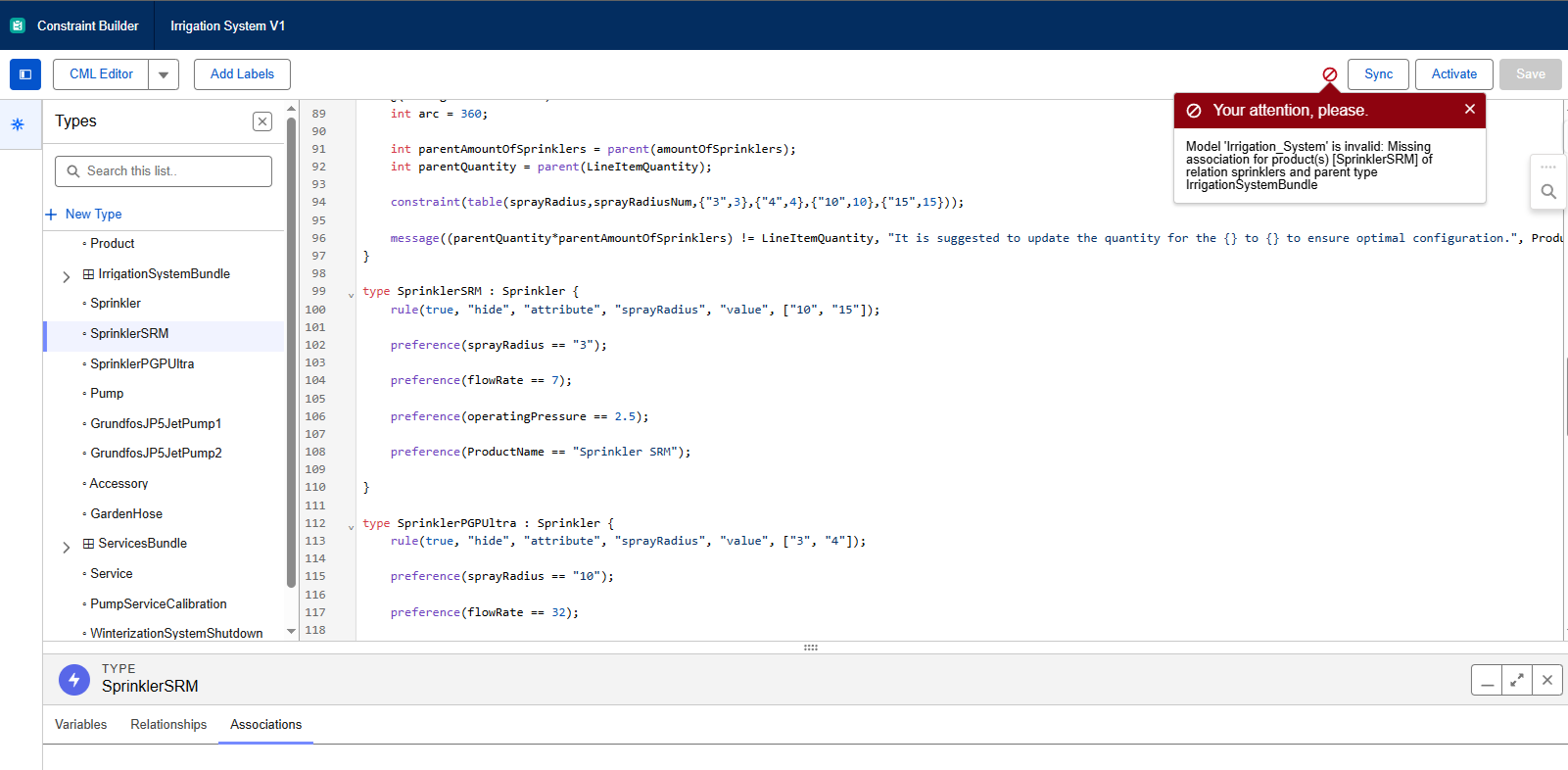

The common mistake: The mirror image of stage one. Here teams often dig into the CML when a large share of activation errors actually live in PCM – a relation that was never associated, a product type left unassigned, an attribute in the wrong status.
If a save passed but activation fails, widen the search to the data. (For the table-constraint case specifically, our walkthrough of table constraints in CML covers the permission and object-access setup that trips activation up most often.)
This is where reading gets genuinely hard. A runtime error depends on the steps the user took, on how carefully the CML was built – whether invalid combinations were handled, whether domains were bounded – on the size of the model, and on dependencies like context properties and custom objects.
The cause is frequently not one line but the interaction of several, which only collided on this particular configuration path. So the message stops being self-explanatory.

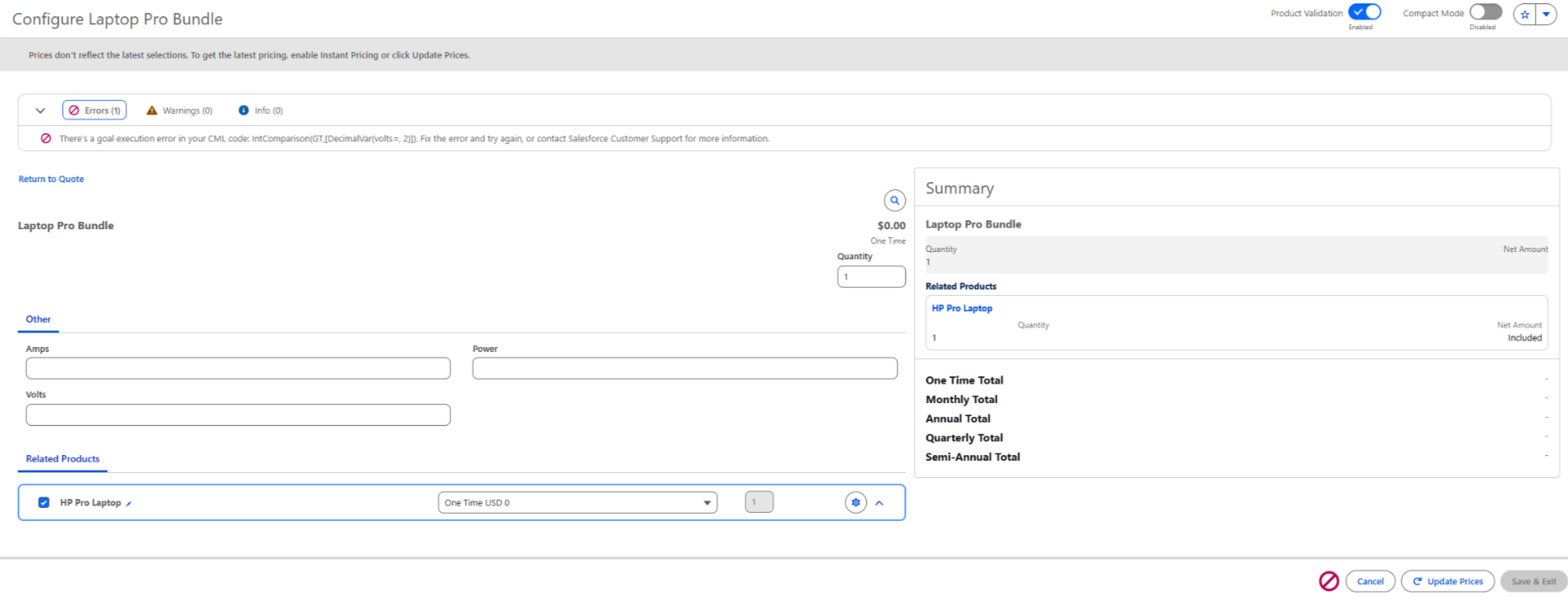

A common pattern is one that looks like one thing while the real cause is another: the UI surfaces a goal execution error citing a specific comparison – something close to “There’s a goal execution error in your CML code: IntComparison(GT,…)” – while the underlying event is a timeout. The line named in the message is where the solver gave up, not necessarily where the problem began. To see the difference, you stop reading the UI and start reading the Apex debug log.
The debug log is verbose – it dumps the whole configuration tree – but the part that matters is small. Salesforce documents how to enable and read it for CML; for diagnosis, you want the RLM_CONFIGURATOR_STATS block and the final error block. Here is the meaningful slice of a real log for a configuration that failed:
RLM_CONFIGURATOR_STATS|[ {
"Number of Backtracks" : "2118036",
"Total Execution Time" : "10001ms",
"Number of Variables" : "8",
"Number of Constraints" : "3"
} ]
RLM_CONFIGURATOR_END|[ {
"errorMessage" : "There’s a goal execution error in your CML code:
IntComparison(GT,[DecimalVar(volts=, 2)])...",
"messageKey" : "ReachedTimeLimitDuringGoalExecutionBecauseOf"
} ]
Read top to bottom, the story is clear. The UI blamed a comparison on volts, but the messageKey is ReachedTimeLimitDuringGoalExecutionBecauseOf – a timeout. Total Execution Time of 10001ms confirms the solver hit its limit, and Number of Backtracks of over two million shows why: on a model with only eight variables and three constraints, the solver explored an enormous number of dead ends before time ran out.
The fix is not in the line the UI named; it is in the modeling – bounding domains and validating source values before the heavy constraint runs.
As a rough reference, Salesforce’s guidance treats a healthy configuration as running under 100 ms with fewer than 1,000 backtracks. Numbers like the ones above are several orders of magnitude past that.
The method that makes this reliable: replay the configuration step by step with the log open, and watch how the variables and metrics change after each action. The step where time or backtracks jump is the step that introduced the problem – far more precise than the UI error alone.
Because so many runtime errors are really performance problems wearing an error message, the patterns behind them are worth knowing in advance. Three of our articles go deeper:
The Veloce team has collected the most common CML errors across all three stages into a downloadable reference: each pairs the exact message with a minimal CML snippet that reproduces it and a short cause-and-fix – from undefined variables at save time, through table-constraint permissions at activation, to solver timeouts at runtime.
Whether the error showed up in the CML Editor or the configurator, the order is the same:
A few habits help: treat CML errors as model-state errors, not just broken lines; use the CML Editor even for Visual Builder rules, since it exposes the generated logic; define explicit domains and defaults so the solver has less to search; scope constraints close to the products they affect; and add business-readable messages for expected invalid combinations.
Four assumptions cause most of the wasted time on CML errors.
Some errors won't resolve from the message, or even a single log line. You may need the debug log, the model version, the product setup, the context, and a reproducible scenario together.
And because Salesforce releases can change configurator behavior, an assumption that held last release is worth re-checking after an upgrade – migrated logic especially, since converting old rules to CML isn't just a syntax swap.
A CML error message is only a starting point. A compile error lands fairly honestly on its own line – a runtime error points at where the solver stopped, which can be a long way from where the trouble started. Reading well means knowing which of those you are looking at before you decide what to change.
When a message won’t resolve from the UI alone – when it takes the debug log, the model version, the product setup, and a reproducible scenario together to see the picture – that is the kind of problem the Veloce CML health check engagement is built to untangle.
The error names a specific line. Isn't that where the problem is?
Sometimes. A save-time compile error usually does point at the syntax. At runtime, the named line is just where the solver gave up – the real cause may be a mix of constraints, context, and product structure. Classify the stage first.
My configurator shows a goal execution error, but the line it names looks fine. Why?
That usually means a timeout, not a logic error. Check the debug log: if the messageKey is ReachedTimeLimitDuringGoalExecutionBecauseOf with execution time at the limit and backtracks in the hundreds of thousands, it's a performance problem – the named line is just where time ran out.
Activation failed but the CML saved fine. Where do I look?
At the data, not the code. Activation validates the model against the product setup – hierarchy, associations, attribute status, and (for table constraints) object permissions. Usually it's a missing relationship association or an unassigned product type in PCM.
How do I know if a slow configuration is a CML problem or a platform one?
Execution time and the backtrack count in the debug log. Time at the limit, with backtracks in the thousands or more, points to the model. Low backtracks with slow execution point elsewhere – PCM, pricing, or an integration.
